  • Centerless Grinder

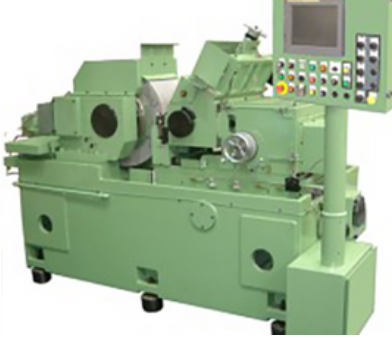

    Centerless Grinder

    High-Speed, High-Precision Centerless Grinding Machine

    공작물을 센터 없이 연삭휠과 조정휠 사이에서 지지하여 외경을 정밀 연삭하는 센터레스 연삭기입니다.

    목록
Overview
  • •Model : CSG-250 Series
  • •Capacity : Ø5 ~ Ø100 mm
  • •Max. Work Length : 250 mm
  • •Grinding Wheel : Ø610 / Ø455 x 250 x Ø304.8 mm
  • •GW Spindle Motor : 15 kW
  • •Resolution of Table : 0.1 μm
  • •Floor Space : 3,000 x 3,500 mm / Weight : 5,500 kg
Process Capabilities
  • •In-feed Grinding : X, Z
  • •Thru-feed Grinding : X, Z
  • •CBN Wheel Grinding : X, Z
  • •OD / T-face Simultaneous Grinding : X, Z
Design Features
  • •Concrete Bed for Rigidity & Thermal Stability
  • •Symmetrical Structure for Thermal Stability
  • •Dual Support Spindle for High Stiffness
  • •CBN Wheel Compatible
  • •Rotary Diamond Dresser
  • •Resolution of Table : 0.1 μm
Machine Specification
UNITSPECIFICATION
CapabilityCapacityØ5 ~ Ø100 mm
Max. Work length250 mm
Grinding WheelSizeØ610 / Ø455 x 250 x Ø304.8 mm
Regulating wheelØ330 x 250 x Ø203.2 mm
SpindleGW spindle motor15 kW
Tilting angle-1° ~ +5°
Resolution of table0.1 μm
TypeOthersIn-feed type / Thru-feed type / Quick change wheel position
FacilitiesFloor space3,000 x 3,500 mm
Weight5,500 kg
