  • Grinding Line System

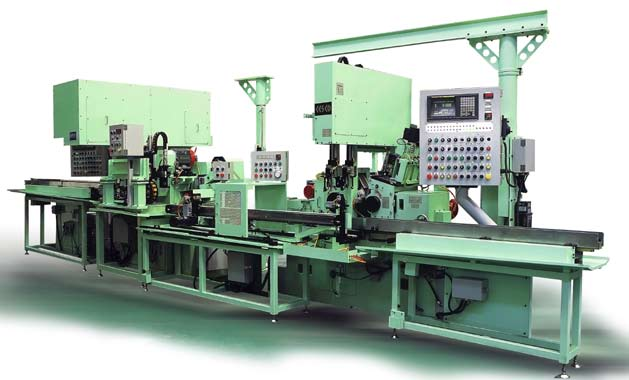

    Grinding Line System

    Automated Grinding Line System for Mass Production

    연삭기와 자동화 장비를 연계한 연삭 라인 자동화 시스템입니다.

    목록
Overview
  • •Type : Automated Grinding Line System
  • •Application : Centerless / Cylindrical / Angular Grinding Line
  • •Bearing : Hydrostatic Bearing (GW Spindle & Table)
  • •Control : PLC + AC Servo Motor 연동 자동화 제어
  • •Process : 투입 → 연삭 → 계측 → 배출 전공정 자동화
  • •Custom : 고객 공정에 맞춘 맞춤형 라인 구성 가능
Process Capabilities
  • •Loading / Unloading : Auto
  • •In-process Gauging : Auto
  • •Transfer System : Gantry Loader / Conveyor
  • •Full Line Automation : PLC Control
Design Features
  • •Full Automation : Loading → Grinding → Gauging → Unloading
  • •Hydrostatic Bearing Spindle & Table
  • •In-process Gauging System
  • •Gantry Loader / Conveyor Transfer System
  • •PLC + AC Servo Motor Control
  • •Flexible Line Configuration Available
Machine Specification
UNITSPECIFICATION
SystemTypeAutomated Grinding Line System
ApplicationCenterless / Cylindrical / Angular Grinding Line
ProcessLoading → Grinding → Gauging → Unloading
SpindleBearingHydrostatic Bearing (GW Spindle & Table)
GaugingIn-process Gauging System
TransferTypeGantry Loader / Conveyor
ControlPLC + AC Servo Motor
ConfigurationCustomFlexible Line Configuration Available
