  • Angular Grinder

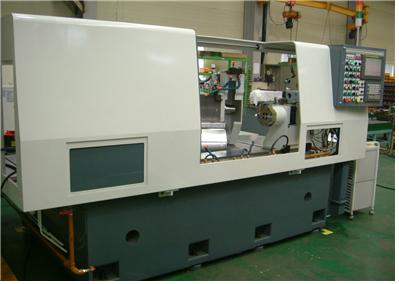

    Angular Grinder

    High-Precision Angular Grinding Machine with Hydrostatic Bearing

    유정압 베어링이 적용된 GW 스핀들과 60° 경사 크로스 슬라이드 구조로 외경·테이퍼·R면 등 다양한 형상의 정밀 연삭이 가능한 앵귤러 연삭기입니다.

    목록
Overview
  • •Model : CAG-600-40
  • •Capacity : Swing Ø400 mm, Max. Work Size Ø300 mm
  • •Grinding Wheel : Ø610 x 85 x Ø254 mm
  • •X-axis Stroke : 400 mm / Z-axis Stroke : 1,000 mm
  • •Head Stock Rotation : 20 ~ 600 rpm
  • •GW Spindle Revolving Precision : 0.2 μm
  • •Floor Space : 2,350 x 2,000 mm / Weight : 4,500 kg

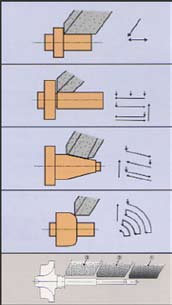

Process Capabilities
  • •Plunge Grinding : X, Z, C
  • •Traverse Grinding : X, Z, C
  • •Taper Grinding : X, Z, C
  • •R Grinding : X, Z, C
  • •Multistage Grinding : X, Z, C

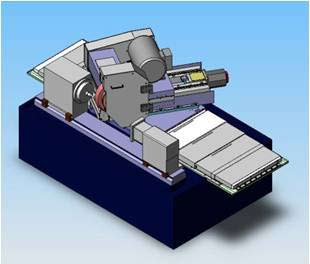

Design Features
  • •Hydrostatic Bearing (GW Spindle, X, Z-Axis)
  • •GW Spindle Revolving Precision : 0.2 μm
  • •Wheel Head & X-Table All-in-one Cast-iron Structure
  • •X, Z-Axis Cross Slide (60° Inclination)
  • •Thermal Stability High-stiffness Cast-iron Bed
  • •Min. Set Unit : 0.0001 mm
Machine Specification
UNITSPECIFICATION
CapabilitySwingØ400 mm
Center distance650 mm
Max. work sizeØ300 mm
Max. load600 kg
Grinding WheelSizeØ610 x 85 x Ø254 mm
Rotation speed45 (60) m/sec
Rotation1,409 (1,875) rpm
X-axisTable stroke400 mm
Max. speed15 m/min
Min. set unit0.0001 mm
Z-axisTable stroke1,000 mm
Max. speed15 m/min
Min. set unit0.0001 mm
Head / Tail stockHead stock rotation20 ~ 600 rpm
Tail stock stroke60 mm
FacilitiesFloor space2,350 x 2,000 mm
Weight4,500 kg
