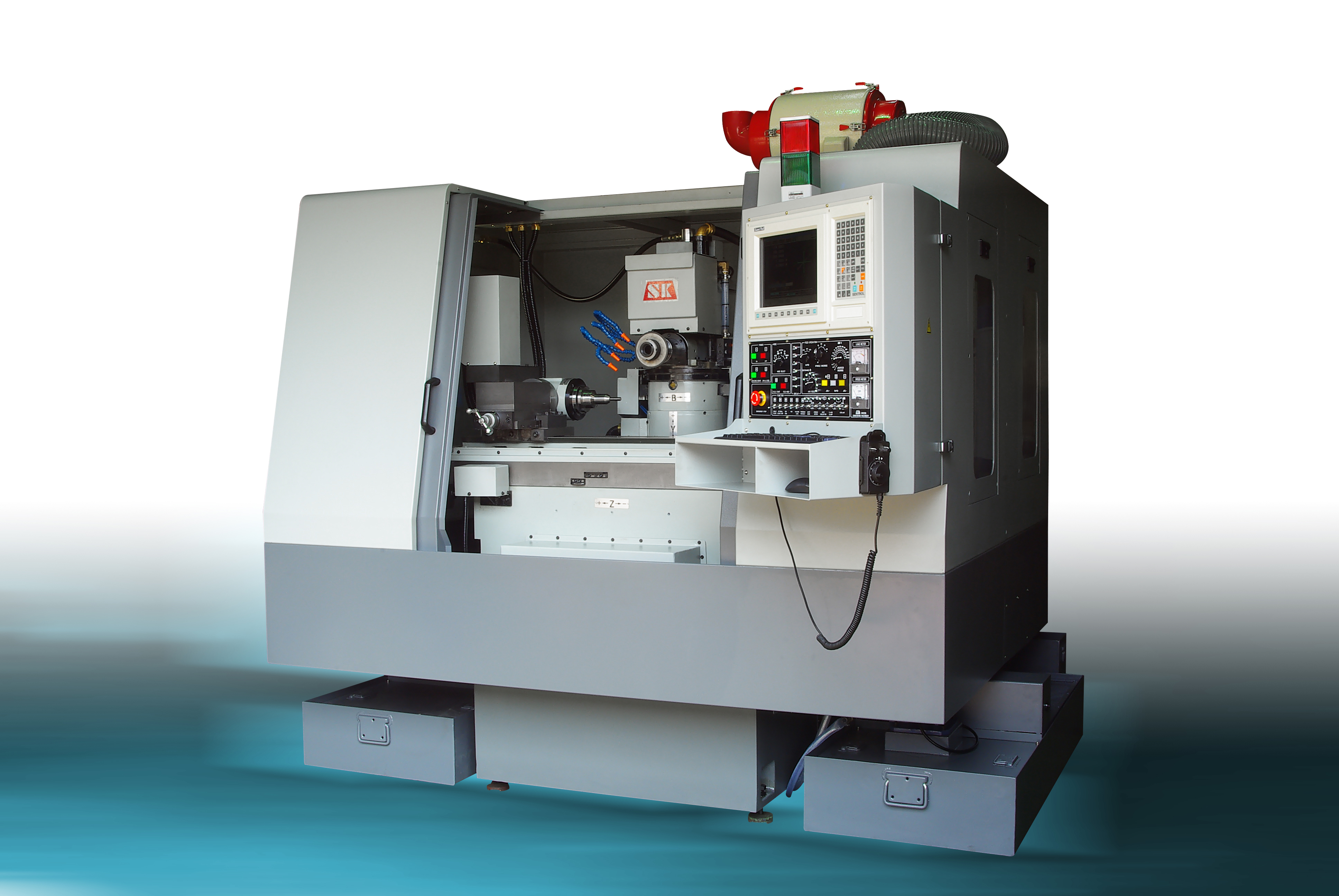

    Tool Grinder

    5-Axis CNC Tool Grinding Machine

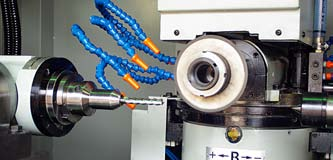

    엔드밀, 드릴, 리머 등 다양한 절삭 공구를 고정밀로 연삭·제작하는 5축 CNC 공구 연삭기입니다.

    목록
Overview
  • •Model : CNS-55S
  • •Flute Length : Max. 480 mm
  • •Tool Diameter : Ø200 mm
  • •Axis Control : X, Y, Z, B, C 5-Axis Simultaneous
  • •Spindle Speed : Max. 8,000 rpm
  • •Spindle Motor : 3.7 / 5.5 kW
  • •Weight : 4,000 kg

Process Capabilities
  • •End Mill : X, Y, Z, B, A
  • •Drill : X, Y, Z, B, A
  • •Ball End Mill : X, Y, Z, B, A
  • •Taper End Mill : X, Y, Z, B, A
  • •Reamer / Special Tool : X, Y, Z, B, A
Design Features
  • •5-Axis Simultaneous Control (X, Y, Z, B, A)
  • •AC Servo Motor Spindle : Max. 8,000 rpm
  • •Solid Bed All-in-one Structure for Powerful Cutting
  • •Application : End Mill, Ball End Mill, Drill, Reamer, Taper End Mill
  • •CAD/CAM System (ENS-ToolMaker) : NC Code Auto Generation
  • •Virtual Machining Verification Before Production
  • •User-friendly GUI / PC-NC Based System
Machine Specification
UNITSPECIFICATION
CapabilityFlute lengthMax. 480 mm
Tool diameterØ200 mm
Distance (Workhead - Tailstock)650 mm
Axis MovementZ-axis stroke550 mm / Max. 6,000 mm/min
X-axis stroke280 mm / Max. 6,000 mm/min
Y-axis stroke230 mm / Max. 6,000 mm/min
B-axis rotation320° / Max. 3,000 deg/min
A-axis rotation∞ / Max. 6,000 deg/min
SpindleGrinding wheel speedMax. 8,000 rpm
Spindle motor3.7 / 5.5 kW
Work spindleISO 50
FacilitiesPower23 kVA
Weight4,000 kg
