  • LSM-400

    LSM-400

    An ultra-precision micro-structure machining system with 3 to 5 axes that produces micrometer-scale features on large surfaces with high precision, supporting combined Shaping / Milling / Turning operations.

    List
Overview
  • •Slide Travel : X 450mm, Y 450mm, Z 120mm
  • •Max. Feedrate : X 5 m/min, Y 10 m/min, Z 2 m/min
  • •Table Size : 450mm x 450mm
  • •Allowance Load : 100 kg
Process Capabilities
  • •Shaping : X,Y,Z
  • •Milling : X,Y,Z,C
  • •Turning : X,Y,Z,C
  • •Fast Tool Servo : X,Y,Z,C,FTS
  • •Elliptical Vibration Cutting(TAGA) : X,Y,Z,C,TAGA
Design Features
  • •NO Friction Slide
  • •0.001 ㎛ Control Resolution
  • •Hydrostatic Bearing (X, Y-Axis)
  • •Rotation Table with Hydrostatic Bearing (Option)
  • •Elliptical Vibration Cutting - TAGA (Option)
  • •Delta tau UMAC or Power PMAC Control
Machine Specification
UNITSPECIFICATION
Travel StrokeX-Axis450 mm
Y-Axis450 mm
Z-Axis120 mm
TableWorking surface450mm x 450mm
Allowance load100 kg
Max. FeedrateX-Axis5 m/min
Y-Axis10 m/min
Z-Axis2 m/min
Control ResolutionX, Z-Axis0.001 ㎛
Y-Axis0.01 ㎛
BearingX, Y-AxisHydrostatic bearing
Z-AxisCross roller or Air bearing
Rotation Table (Option)Diameter440 mm
Bearing typeHydrostatic bearing
Max. rotational speed100 rpm
Control resolution0.023 arcsec
CNCOperating systemDelta tau UMAC or Power PMAC
Multi Axis Control4 Axis (X, Z, C & B)
FacilitiesFloor space1.3m(L) x 1.2m(W) x 1.8m(H)
Power200VAC, 3Ph, 60Hz, 40kVA
Product Detail Images
  • Retroreflection

    Retroreflection

  • Lenticular + Prism

    Lenticular + Prism

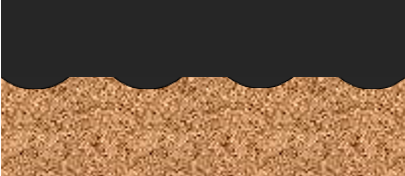

  • Lenticular + Mirror Finish

    Lenticular + Mirror Finish

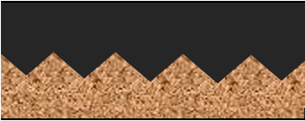

  • Cross Wave

    Cross Wave
