  • LSM-1000

    LSM-1000

    An ultra-precision micro-structure machining system with 3 to 5 axes that produces micrometer-scale features on large surfaces with high precision, supporting combined Shaping / Milling / Turning operations.

    List
Overview
  • •Slide Travel : X 900mm, Y 1,000mm, Z 120mm
  • •Max. Feedrate : X 5 m/min, Y 12 m/min, Z 2 m/min
  • •Table Size : 1000mm x 800mm
  • •Allowance Load : 500 kg
Process Capabilities
  • •Shaping : X,Y,Z
  • •Milling : X,Y,Z,C
  • •Turning : X,Y,Z,C
  • •Fast Tool Servo : X,Y,Z,C,FTS
  • •Elliptical Vibration Cutting(TAGA) : X,Y,Z,C,TAGA
Design Features
  • •NO Friction Slide
  • •0.001 ㎛ Control Resolution
  • •Hydrostatic Bearing (X, Y-Axis)
  • •Rotation Table with Hydrostatic Bearing (Option)
  • •Elliptical Vibration Cutting - TAGA (Option)
  • •Delta tau UMAC or Power PMAC Control
Machine Specification
UNITSPECIFICATION
Travel StrokeX-Axis900 mm
Y-Axis1,000 mm
Z-Axis120 mm
TableWorking surface1000mm x 800mm
Allowance load500 kg
Max. FeedrateX-Axis5 m/min
Y-Axis12 m/min
Z-Axis2 m/min
Control ResolutionX, Z-Axis0.001 ㎛
Y-Axis0.01 ㎛
BearingX, Y-AxisHydrostatic bearing
Z-AxisCross roller or Air bearing
Rotation Table (Option)Diameter800 mm
Bearing typeHydrostatic bearing
Max. rotational speed50 rpm
Control resolution0.018 arcsec
CNCOperating systemDelta tau UMAC or Power PMAC
Multi Axis Control4 Axis (X, Z, C & B)
FacilitiesFloor space3.2m(L) x 2.0m(W) x 1.9m(H)
Power200VAC, 3Ph, 60Hz, 50kVA
Product Detail Images
  • Retroreflection

    Retroreflection

  • Lenticular + Prism

    Lenticular + Prism

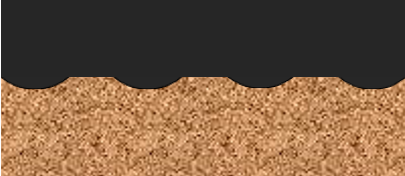

  • Lenticular + Mirror Finish

    Lenticular + Mirror Finish

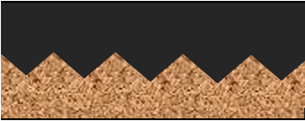

  • Cross Wave

    Cross Wave
