  • LSM-800

    LSM-800

    由3~5轴构成，可在大面积表面上高精度实现微米级微细形状，是支持Shaping / Milling / Turning复合加工的超精密微细形状加工机。

    目录
Overview
  • •Slide Travel : X 850mm, Y 670mm, Z 150mm
  • •Max. Feedrate : X 15 m/min, Y 9 m/min, Z 3 m/min
  • •Table Size : 750mm x 600mm
  • •Allowance Load : 100 kg
Process Capabilities
  • •Shaping : X,Y,Z
  • •Milling : X,Y,Z,C
  • •Turning : X,Y,Z,C
  • •Fast Tool Servo : X,Y,Z,C,FTS
  • •Elliptical Vibration Cutting(TAGA) : X,Y,Z,C,TAGA
Design Features
  • •NO Friction Slide
  • •0.001 ㎛ Control Resolution
  • •Hydrostatic Bearing (X, Y, Z-Axis)
  • •Rotation Table with Hydrostatic Bearing (Option)
  • •Elliptical Vibration Cutting - TAGA (Option)
  • •Delta tau Power PMAC Control
Machine Specification
UNITSPECIFICATION
Travel StrokeX-Axis850 mm
Y-Axis670 mm
Z-Axis150 mm
TableWorking surface750mm x 600mm
Allowance load100 kg
Max. FeedrateX-Axis15 m/min
Y-Axis9 m/min
Z-Axis3 m/min
Control ResolutionX, Z-Axis0.001 ㎛
Y-Axis0.001 ㎛
BearingX, Y-AxisHydrostatic bearing
Z-AxisHydrostatic bearing
Rotation Table (Option)Diameter700 mm
Bearing typeHydrostatic bearing
Max. rotational speed5 rpm
Control resolution0.018 arcsec
CNCOperating systemDelta tau Power PMAC
Multi Axis Control4 Axis (X, Y, Z & C1, C2, A)
FacilitiesFloor space2.4m(L) x 2.0m(W) x 1.6m(H)
Power380VAC, 50/60Hz, 20kVA
Product Detail Images
  • 回归反射

    回归反射

  • 柱状透镜+棱镜

    柱状透镜+棱镜

  • 交叉波纹

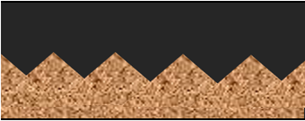

    交叉波纹

  • 柱状透镜+镜面

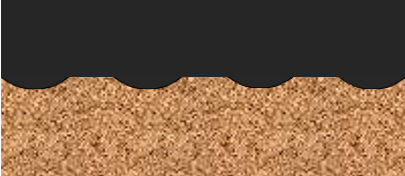

    柱状透镜+镜面
