  • LSM-400

    LSM-400

    由3~5轴构成，可在大面积表面上高精度实现微米级微细形状，是支持Shaping / Milling / Turning复合加工的超精密微细形状加工机。

    目录
Overview
  • •Slide Travel : X 450mm, Y 450mm, Z 120mm
  • •Max. Feedrate : X 5 m/min, Y 10 m/min, Z 2 m/min
  • •Table Size : 450mm x 450mm
  • •Allowance Load : 100 kg
Process Capabilities
  • •Shaping : X,Y,Z
  • •Milling : X,Y,Z,C
  • •Turning : X,Y,Z,C
  • •Fast Tool Servo : X,Y,Z,C,FTS
  • •Elliptical Vibration Cutting(TAGA) : X,Y,Z,C,TAGA
Design Features
  • •NO Friction Slide
  • •0.001 ㎛ Control Resolution
  • •Hydrostatic Bearing (X, Y-Axis)
  • •Rotation Table with Hydrostatic Bearing (Option)
  • •Elliptical Vibration Cutting - TAGA (Option)
  • •Delta tau UMAC or Power PMAC Control
Machine Specification
UNITSPECIFICATION
Travel StrokeX-Axis450 mm
Y-Axis450 mm
Z-Axis120 mm
TableWorking surface450mm x 450mm
Allowance load100 kg
Max. FeedrateX-Axis5 m/min
Y-Axis10 m/min
Z-Axis2 m/min
Control ResolutionX, Z-Axis0.001 ㎛
Y-Axis0.01 ㎛
BearingX, Y-AxisHydrostatic bearing
Z-AxisCross roller or Air bearing
Rotation Table (Option)Diameter440 mm
Bearing typeHydrostatic bearing
Max. rotational speed100 rpm
Control resolution0.023 arcsec
CNCOperating systemDelta tau UMAC or Power PMAC
Multi Axis Control4 Axis (X, Z, C & B)
FacilitiesFloor space1.3m(L) x 1.2m(W) x 1.8m(H)
Power200VAC, 3Ph, 60Hz, 40kVA
Product Detail Images
  • 回归反射

    回归反射

  • 柱状透镜+棱镜

    柱状透镜+棱镜

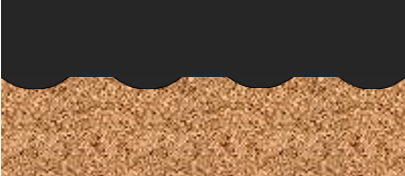

  • 柱状透镜+镜面

    柱状透镜+镜面

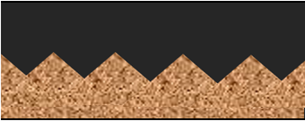

  • 交叉波纹

    交叉波纹
